4G/LTE, LTE-Advanced Baseband Solutions

4G/LTE, LTE-Advanced Baseband Solutions

  • ASTRI is one of the worldwide pioneers in LTE and beyond standard compliant communications technologies including baseband and upper layer protocol stacks. In collaboration with industry partners, we delivered the world’s first commercial grade FDD/TDD dual mode LTE small cell and TD-LTE terminal baseband core reference designs. Our reference designs are industry proven, having passed interoperability tests with infrastructure vendors and operators. In particular, we enable partners to pass through a leading operator’s stringent tender tests on small cells and terminals.

    LTE/LTE-advanced small cell solutions

    ASTRI is developing the next generation of LTE and LTE-Advanced small cells based on a variety of highly integrated SoC platforms.

    P.5

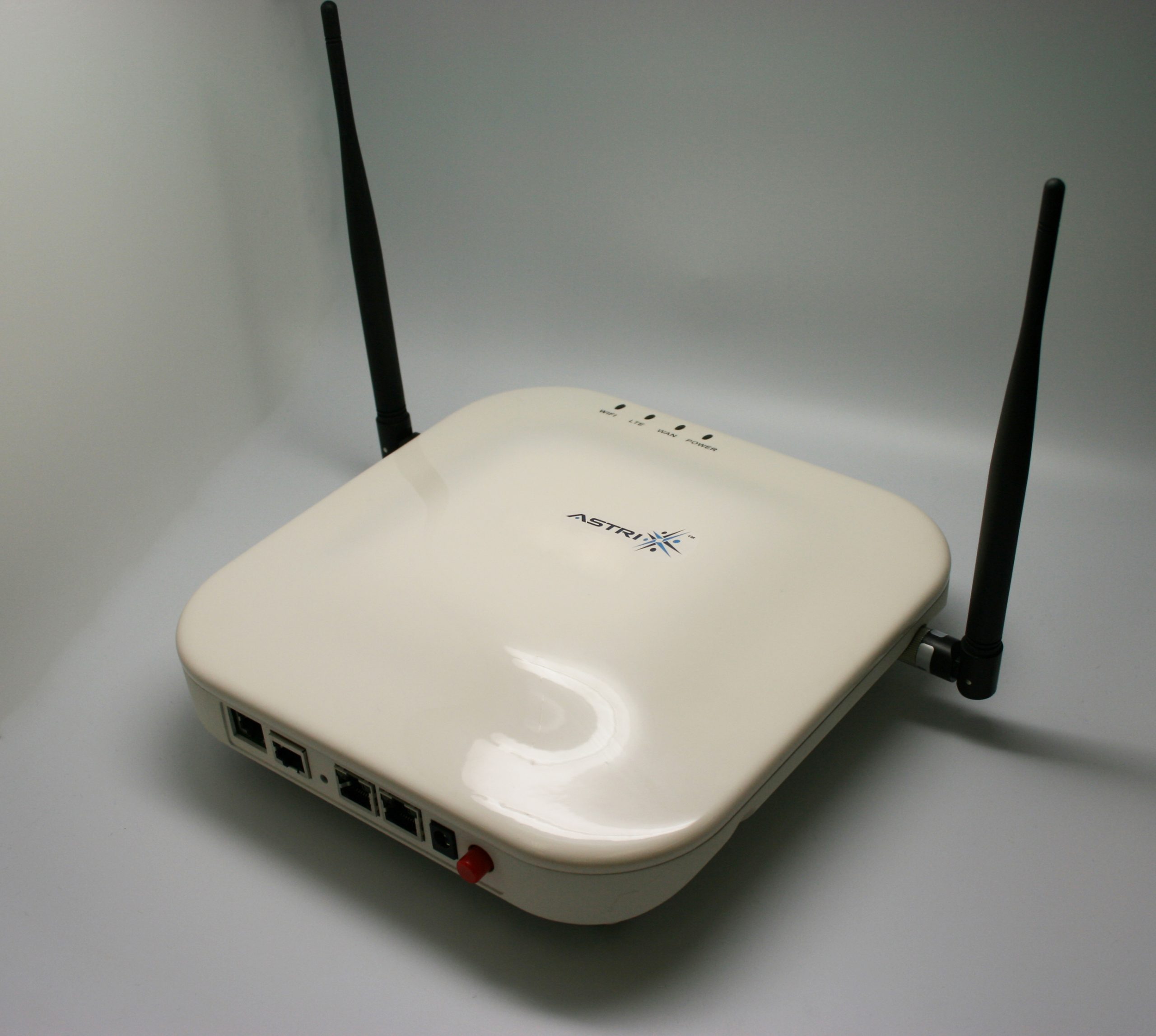

    ASTRI’s commercial LTE Small Cell supports TD-LTE and LTE FDD standards

    LTE small cell specification

    ParameterSpecification
    Silicon Freescale BSC9131/BSC9132
    Broadcom BCM61735/BCM61755
    Standards3GPP Release 9
    Bandwidth 5, 10, 15, 20MHz
    Duplexing FDD and TDD (All UL-DL conf., All special sub-frame conf.)
    Cell sizeUp to 10 km
    MobilityUp to 100 km/h
    ModulationDL/UL (QPSK, 16QAM and 64QAM)
    Users/TTI16
    DL Throughputs Up to 150 kbits per sub-frame
    UL ThroughputsUp to 75 kbits per sub-frame
    MIMO 2x2
    UE Support UE category 1 to 4
    Stack Interface Defined FAPI messages, Integrated with commercial 3rd party stacks
    Radio Interface ADI (JESD207 interface)
    SnifferLTE/TD-SCDMA/GSM

    From microcell and DAS to C-RAN

    ASTRI is extending small cell technologies to micro cell, and applying distributed antenna system (DAS) to extend signal coverage on isolated spots in both indoor and outdoor environments.

    LTE micro cell specification

    ParameterSpecification
    SiliconFreescale B4860
    Standards3GPP Release 10
    Bandwidth 5, 10, 15, 20MHz
    Sectors3 sectors for up to 2 Tx
    2 sectors for up to 8 Tx
    Carrier AggregationSupported
    Duplexing FDD, TDD (All UL-DL configuration and special sub-frame configuration)
    Cell sizeUp to 10 km
    MobilityUp to 160 km/h
    ModulationDL/UL (QPSK, 16QAM and 64QAM)
    Users/TTI20
    DL Throughputs 300 kbits per sub-frame for each sector
    UL Throughputs100 kbits per sub-frame for each sector
    MIMO8 Tx, 4 Rx
    UE Support UE category 1 to 6
    Stack Interface Defined FAPI messages
    Radio Interface CPRI v4.2

    Terminal solutions for IoT & Proximity Server

    ASTRI is developing the next generation of LTE and LTE-Advanced terminal to support machine type communications (MTC) and device-to-device (D2D) communications. Software defined radio (SDR) methodology is adopted, which makes our solutions flexible for different hardware platforms and technology evolution.

    Category-0 MTC UE prototype specification

    ParameterSpecification
    Silicon Freescale BSC9132
    Standards3GPP Release 12 (software upgrade to support upcoming Release 13)
    Bandwidth 1.4, 3, 5, 10, 15, 20MHz
    DuplexingFDD, TDD (All UL-DL configuration and special sub-frame configuration)
    MIMO DL: 2x2, 4x2
    UL: 1x2, 2x2
    Category Support UE category 0 to 4
    MTCR12 category 0 UE
    (Software upgrade to support upcoming R13 eMTC features)
    Pro-Se R12 Pro-Se (D2D)
    (Software upgrade to support upcoming R13 ePro-Se (eD2D))

    P.6

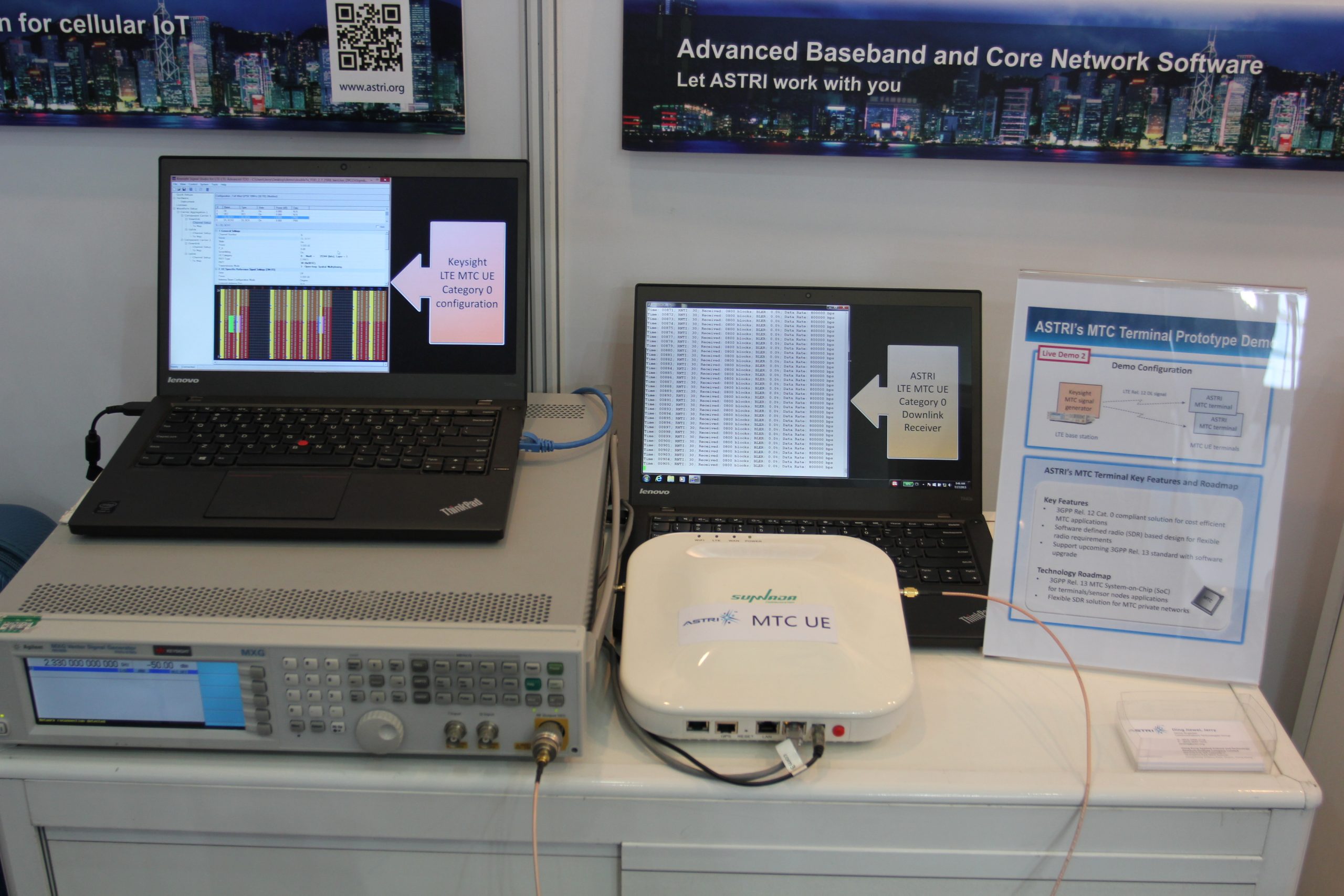

    ASTRI MTC UE prototype live demonstrated in Mobile World Congress 2015, Shanghai.
