SPO2 analog front-end

SPO2 analog front-end

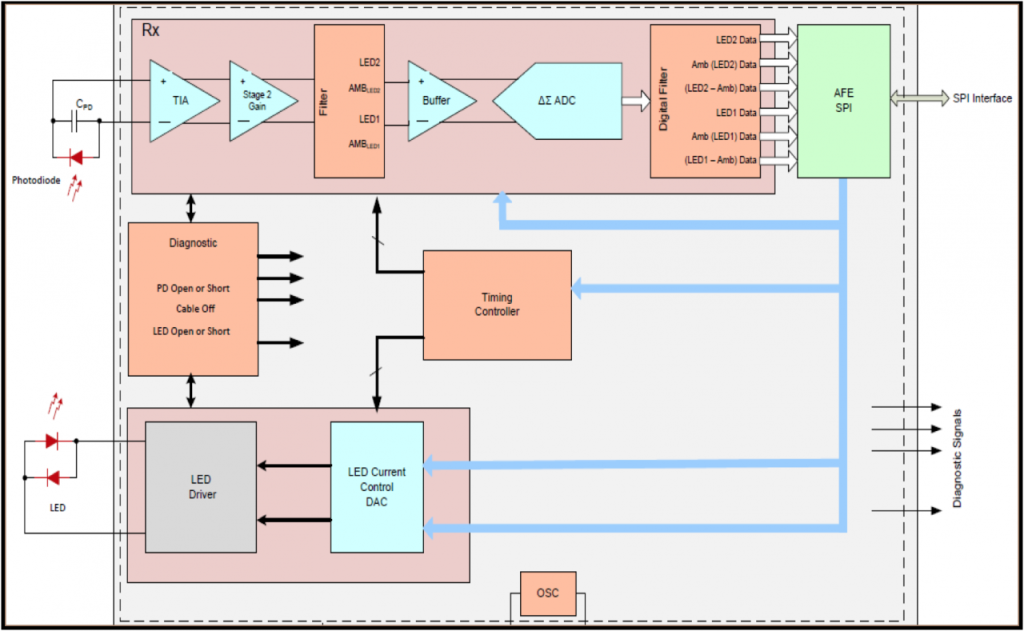

  • The SPO2 analog front-end is a fully integrated analog solution for medical pulse oximeter applications.

    It supports flexible pulse sequencing and timing control from 200Hz to 1KHz for individual LED and up to 3 LEDs at same time.

    Key features:

    Transmitter:

    • Integrated LED driver (H-Bridge, push or pull)
    • 8 bit programmable LED current range from 25mA, 50mA, 75mA to 100mA
    • Independent LED3, LED2, LED1 current reference

    Receiver:

    • Input-referred noise: 50 pA (RMS) (at 5 μA powerdown current)
    • 5 noise-free bits (at 5 μA powerdown current)
    • Analog ambient cancellation scheme with selectable 1 μA to 10 μA ambient current
    • I-V amplifier with seven separate LED2 and LED1 programmable feedback R and C settings
    • Reconfigurable 12/16/20 bit ADC depending on applications
