Bluetooth Low Energy (BLE) 4.2 and 5 Solution

BLE is one of the key enabling technologies for short range wireless IoT applications and wearable electronics. BLE 4.2 release is a significant upgrade incorporating connectivity, security, speed and reliability.  BLE 5 is the latest version of the core specification. The new specification will quadruple the range, double the speed and increase data broadcasting capacity by 800%.



We Offer

  • RF Transceiver
  • Digital Baseband
  • Analog and Digital Peripherals



Key Specification

 BLE 4.2BLE 5
Rx Sensitivity -94dBm-104dBm
Tx Output Power+4dBm+20dBm
Power Consumption9mW (RX)
10mW (TX @0dBm)

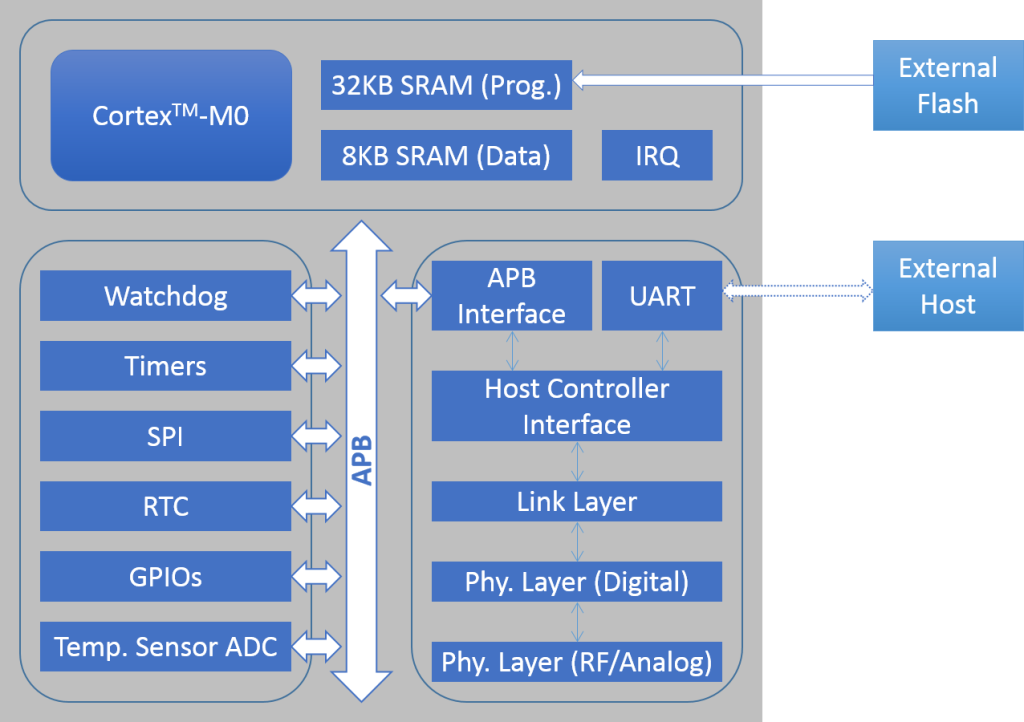

BLE Architecture
BLE Architecture
