Advanced Energy Storage System

I. Advanced Aqueous Based Energy Storage Module

New energy storage technologies are developed to facilitate the applications of eco-friendly and high safety electricity in smart city development. ASTRI’s self-developed advanced aqueous based energy storage module which contains no lead and other toxic materials, aims to provide high energy density with superior environmental advantages. The inherent safety and potential low cost offered by the non-flammable aqueous electrolyte-based energy storage has become the focus of concern as it can prevent hazardous situations caused by conventional energy storage system. ASTRI’s energy storage module exhibits a comparable level of energy density to conventional battery system and has a potential to substitute the pollutant Valve Regulated Lead Acid (VRLA) system. As it is non-flammable, it has subsequent advantages of touch-safe and fail-safe, therefore it will be free from safety risks in the course of transportation, unlike the lithium ion products.

Demo for Advanced Aqueous Based Energy Storage Module



Applications

Environmental friendly energy storage system is on the road to be a high-performing and non-flammable alternative to conventional energy storage markets. ASTRI’s advanced aqueous based energy storage is recommended in applications where physical safety is essential:

  • Autonomous Mobile Robot (AMR): Smart charge energy storage system developed to realize the 24×7 operation of autonomous mobile robot with safety guarantee.
  • Uninterruptable Power Supply (UPS): Stationery energy storage system served as the ideal potential solution for backup UPS in data center environment which is the compelling alternative to VRLA system.
  • Utility Energy Storage: Large scale and low-cost energy storage system in electricity network which utilize intermittent renewable energy sources, serve as the good potential to substitute pollutant VRLA system.

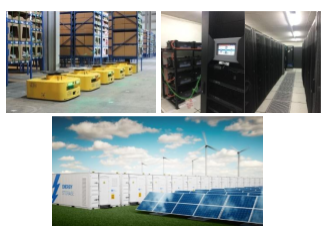

Applications of Advanced Aqueous Based Energy Storage Module



 II. Safety Enhanced Lithium-ion Based Energy Storage Module

It is commonly known that lithium-ion based energy storage system bears possible fire hazard and explosion risks due to self-overheating. In the worst-case scenario, such hazards may lead to serious accidents, damage to properties, or even casualties. ASTRI’s safety enhanced robust energy storage module with built-in revolutionary Self Shutdown Layer (SSL) design will provide additional direct safeguard, which greatly mitigate the risks of thermal runaway and yield a more consummate and effective solution, to protect properties, environment, and human lives:

  • Avoid Fire or Explosion by immediate shutdown inside battery
  • No Negative Effect to normal battery performance
  • Low Cost – 1/3 cost compared to commercial ceramic coating layer
  • Compatible equipment to commercial ceramic layer coating
Self-Shutdown Layer Reaction



Applications

  • Unmanned Aerial Vehicle (UAV)
  • Automated Guided Vehicle (AGV)
  • Portable Power Bank
  • E-Scooter

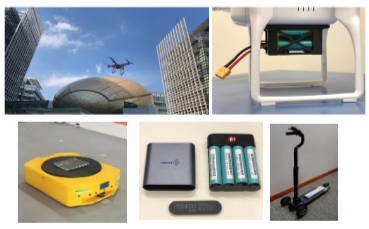

Applications of Safety Enhanced Lithium-Ion Based Energy
